Cessna 172 Heat Blocker Package

Name: Cessna 172 Heat Blocker Package
SKU: UT-C172
Availability: InStock

Original price was: $599.00.Current price is: $299.00.

Spring Flying Event Exclusive – Limited-Time $300 Savings

“Bought them for my 172S — a Texas necessity. They are a perfect fit. I especially love the rear windows and front brow.” — Bob G., Pilot & Jet Shades Customer

Stop Heat Buildup and Overhead Sun Exposure in Your Cessna 172

A targeted 3-piece solution designed specifically for high-wing aircraft to reduce heat, glare, and UV exposure where it hits hardest. Covering the windshield and rear side windows, Jet Shades minimize heat buildup and direct sun intrusion from above and behind. The result is a cooler, more comfortable cockpit with improved visibility throughout your flight.

SKU: UT-C172 Categories: Props, Spring Flying Event Tag: skyhawk

Why Sun Exposure Is More Intense in a Cessna 172

The high-wing design of the Cessna 172 provides excellent visibility, but it also leaves the cockpit more exposed to direct overhead sunlight throughout the day.

On the ramp and in flight, heat builds quickly while sunlight enters through the windshield and rear side windows, creating glare and uneven cockpit temperatures.

This 3-piece system is designed to help you:

Reduce heat buildup inside the cockpit during warm-weather flying
Minimize glare and direct sunlight entering from above and behind the cockpit
Improve visibility and reduce eye strain during climb and cruise
Create a more comfortable experience for both pilots and passengers on longer flights
Help protect interior surfaces from prolonged sun exposure

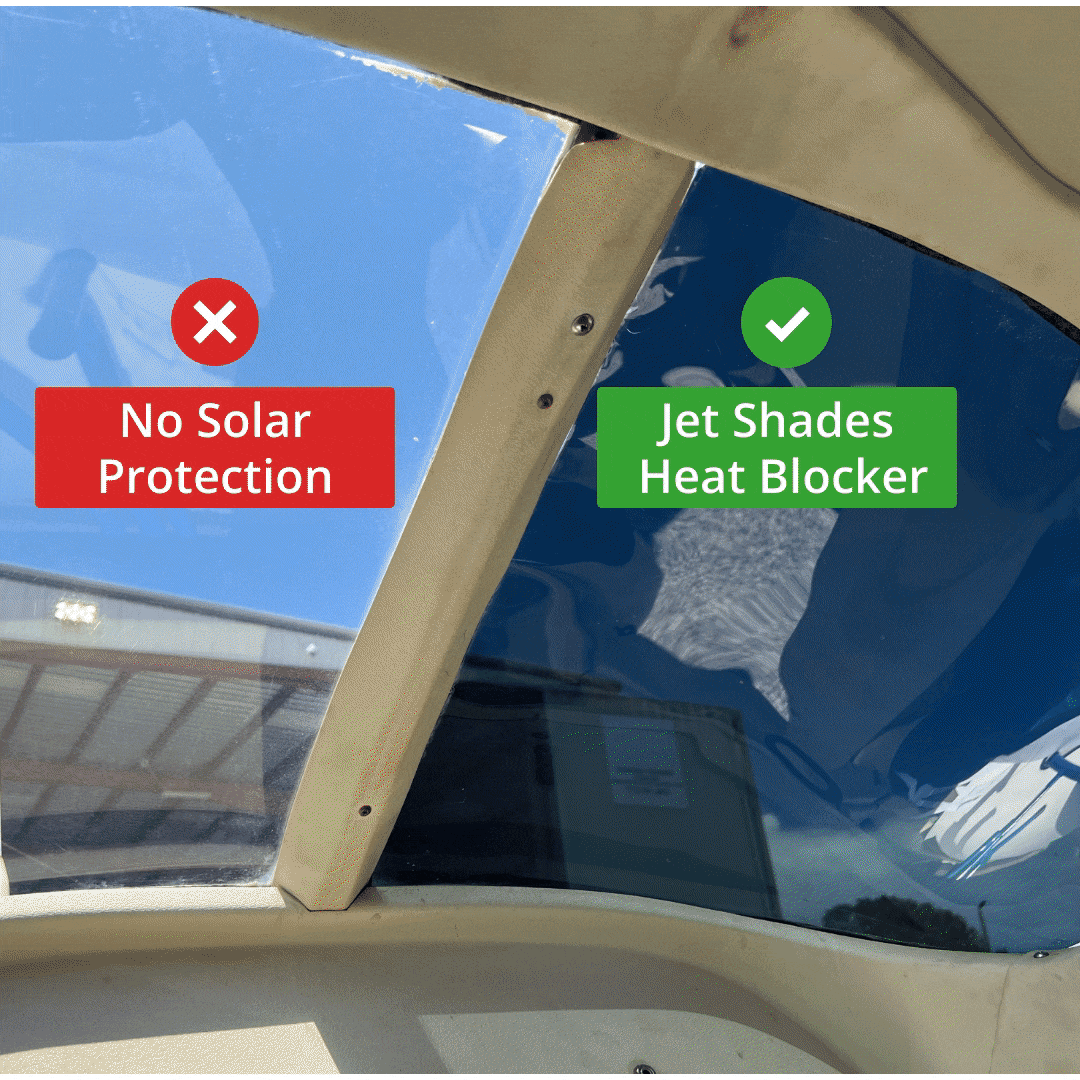

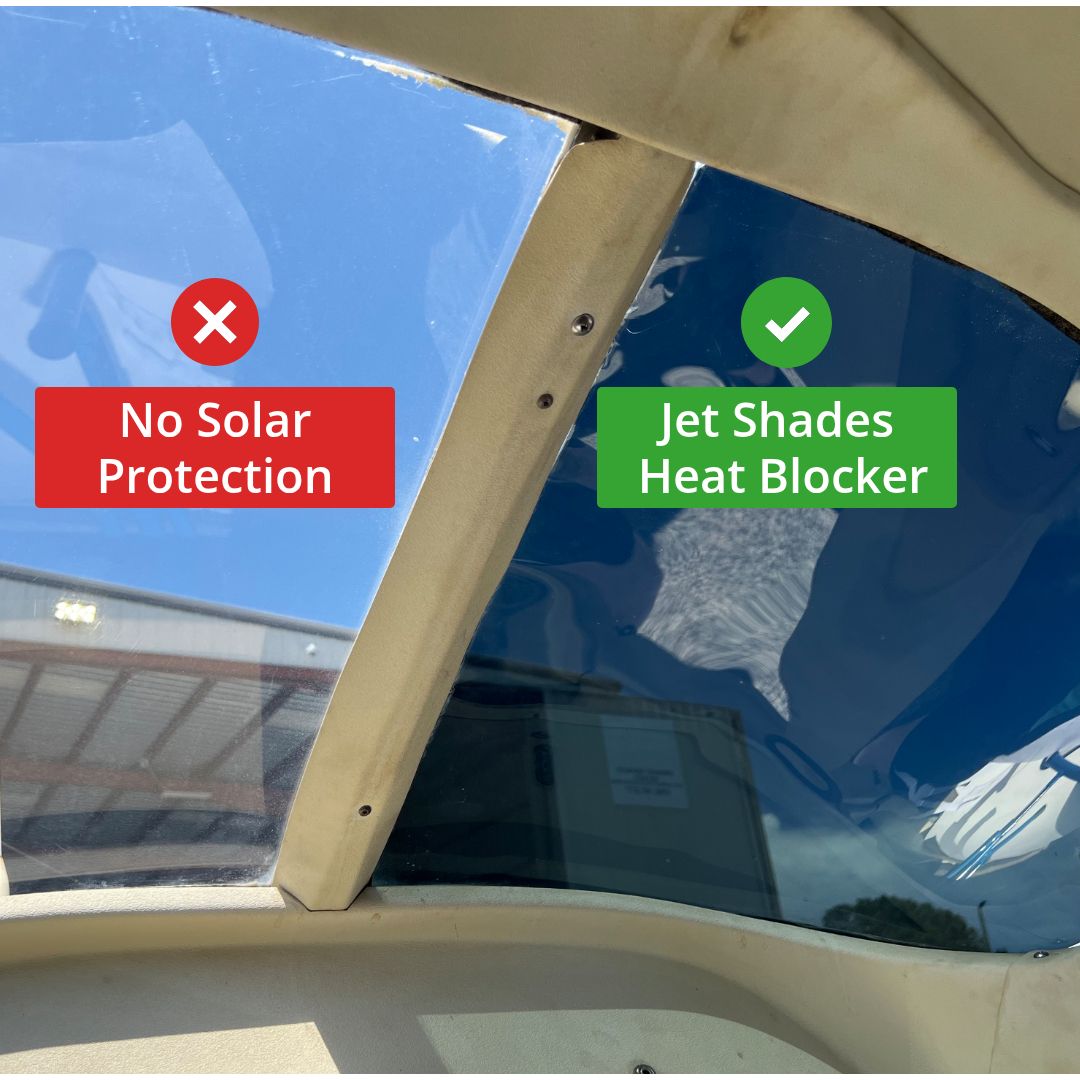

Complete Heat, Glare & UV Protection for Your Cessna 172

Jet Shades are designed with pilot and passenger comfort in mind—delivering complete protection from heat, glare, and harmful UV exposure without blocking your view.

Unlike traditional sun protection, this system is built specifically for in-flight use, helping you maintain visibility while significantly reducing the effects of direct sunlight in the cockpit.

99.9% protection from harmful UVA/UVB radiation
up to 94% infrared heat blocked
as much as 80% glare reduction

This level of protection makes a noticeable difference during:

Long summer flights where cockpit heat builds over time
Climb and cruise when sunlight enters directly through the windshield
Time spent on the ramp in direct sun before and after flight
Flights with passengers who are more sensitive to heat and glare

3 More Reasons You’ll Love Jet Shades

Easy Placement Method

Jet Shades do not require tools, advanced skills, or an STC. They can be fit by any pilot, owner, handyman, aircraft mechanic, or one of our dealers. Our innovative design tucks behind the trim or fits using included windowsill clips. No adhesives or suction cups are used. Jet Shades do not adhere to your aircraft windows and are easily installed/removed for each flight both on the ground or during flight.

The One Sun Shade Solution That Does It All

While Jet Shades were born out of one pilot’s need for superior sun protection during flight, they can also be used to keep your aircraft cooler when parked on hot, sunny ramps. The premium mirrored finish shields the interior from solar damage and offers privacy by preventing visibility inside the aircraft. With Jet Shades you no longer need separate foil guards while parked.

Enhanced Ramp Appeal

Jet Shades are not only about protecting your cockpit with the best sun protection available; they’re also a stylish upgrade that turns heads on the ramp. Elevate this even further by customizing your Jet Shades with your name, tail number, or company logo, making your aircraft a true reflection of your personal style or brand identity.

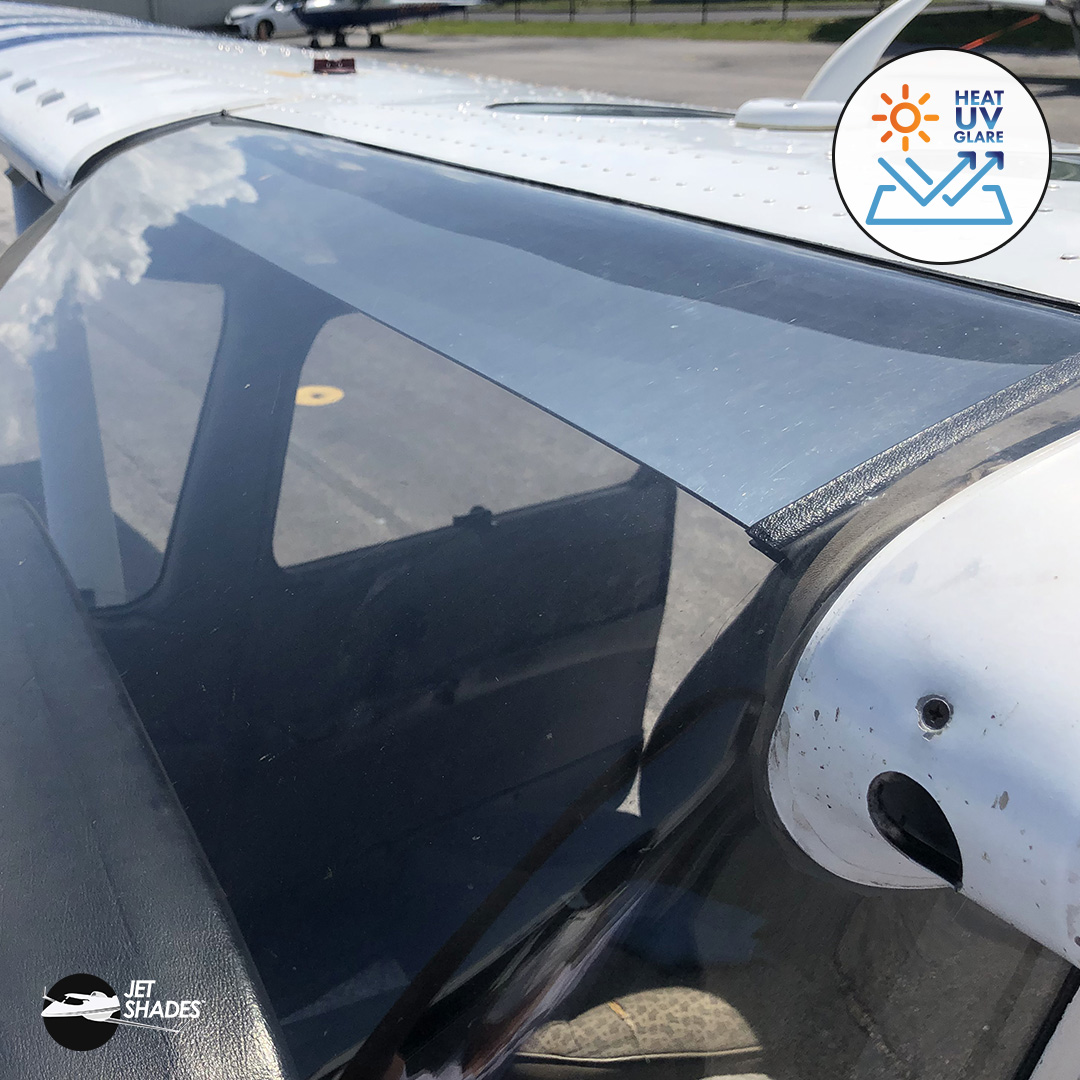

Cessna 172 Skyhawk Jet Shades Heat Blocker Package

Cessna 172 3 Piece Ultra-Thins Heat Blocker Package

This 3-piece Cessna 172 Heat Blocker Package includes precision-cut Jet Shades in our deep blue formulation, engineered for maximum heat and glare reduction in high-exposure areas of the cockpit:

1x Windshield Jet Shade
2x Rear Window Jet Shades
Installation Kit (includes mounting brackets, hook & loop fasteners, alcohol wipes, grease pencil, stickers, instructions)
Microfiber Cleaning Cloth

Jet Shades are precision-cut to closely match your aircraft windows and may require minor trimming for an exact fit. See Installation for details.

Product Compatibility

This product is compatible with the following models:

Cessna 172

If you have a different model Contact Us as we can still produce a set of Jet Shades for your aircraft.

Older 172’s with VHF antennas mounted in the upper windshield will require modification (trimming) to the Jet Shade by the owner or one of our authorized dealers.

NOTE: Due to the oversize dimensions of the windshield shade, Heat Blocker packages are shipped in two boxes. An oversized package fee will be added during checkout.

Product Specifications

Blocks UV, infrared heat, solar energy, and glare (See Solar Protection Specs below)
Approximately 1/32 of an inch thick
Each Jet Shade weighs approximately 0.5 pounds
Made from optical grade material
Bendable and ultra durable, and heat resistant to 200 degrees Farenheit
Two-year warranty against defects in material
100% Made in the USA

Solar Protection Specifications

Premium Package

Jet Shades are renowned for delivering superior protection from solar energy and enhancing visibility. Opt for our Premium Package to experience the ultimate in heat, light, and glare-blocking protection during flight.

Feature Comparison

NOTE: To ensure clear visibility and navigational safety, Pilot and copilot side windows are not available in premium finish.

Cruising Shades

Enjoy gold-standard sun protection precisely where you need it! Cruising Shades are the perfect complement to your windshield Jet Shades, offering additional sun-blocking capabilities specifically for level flight.

Designed for Use with Windshield Jet Shades: Optimizes sun protection while cruising.
Easy Placement for Effective Sun Blocking: Simply position the top of the Cruising Shade behind your windshield Jet Shade and adjust as needed.
Flexible Positioning: Effortlessly reposition to block sunlight from any angle during your flight.
Convenient Storage: Comes with a storage bag for easy stowing when it’s time to descend.
Post-Flight Benefits: After landing, place the Cruising Shades back in the windshield to lower aircraft temperature and prevent interior sun damage.

When you add Cruising Shades to your Jet Shades package, you will receive (2) Cruising Shades w/Premium upgrade and a microfiber cleaning cloth.

High Quality Storage Case

Our high-quality microfiber storage case can be purchased to store your Jet Shades in. You will probably keep your Jet Shades installed most of the time, but there are situations where you may wish to remove them.

Doing a night flight? Before you start up you may want to remove the Jet Shades and place them in the storage bag and place them in the aircraft or leave them in the hangar.

Do others use your plane while you’re away? You may want to remove the Jet Shades and place them in the storage bag.

Taking your plane in for maintenance? We strongly suggest you remove your Jet Shades from the windows and place them in our high-quality storage case to avoid being scratched or damaged during service.

A Few Hours of Install = Endless Hours of Comfort

Jet Shades do not require tools, advanced skills, or an STC. They can be fit by any pilot, owner, handyman, aircraft mechanic, or one of our dealers. Our innovative design tucks behind the aircraft trim or fits using included windowsill clips. No Adhesives or suction cups are used. All Jet Shades™ include an installation manual for reference.

Not a do-it-yourself person? No problem! Jet Shades™ installation can be done by your aircraft mechanic, local shop, or one of our Jet Shades™ authorized dealers.

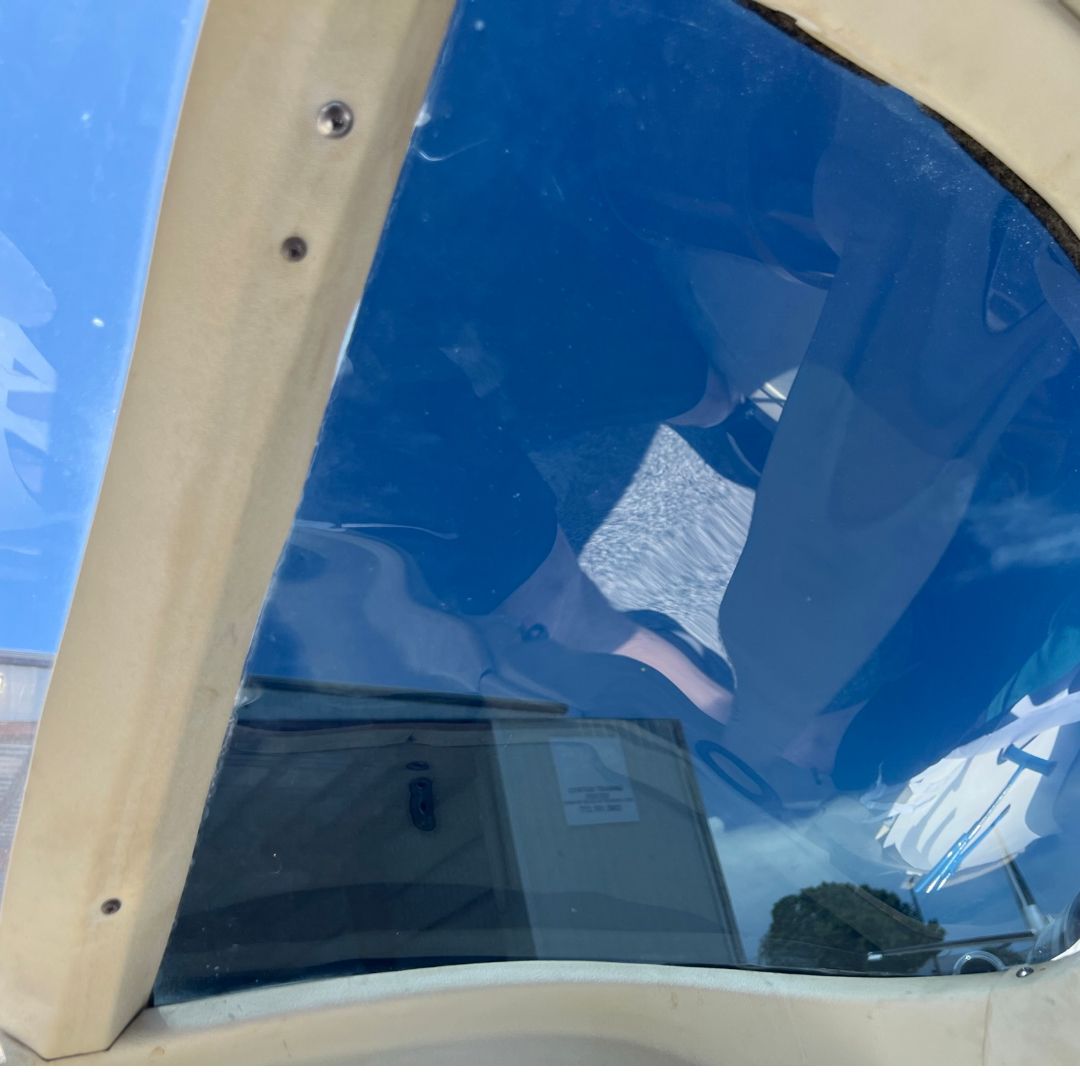

Cockpit Side windows and Cabin windows

Method A: Tuck Behind Method (try this first)

Slide the Jet Shade between the aircraft window trim and window. Jet Shades™ are sized about ½ – 1” larger than the window to allow for this.
Trim with sharp scissors as needed to fit behind the aircraft window trim.
Attach provided clips to the Jet Shade once in place to keep it in position.
Install and remove the Jet Shade by holding the clips and lifting the Jet Shade up then out.

If you cannot slide the Jet Shade between the trim and window, then use Method B.

Method B – Cut and Apply Rubber Trim

Make a template of your window.
Cut the Jet Shade™ about 1/16” smaller than the template.
Apply the provided rubber trim.
Velcro the U-shaped clips to the windowsill.
Insert the Jet Shade™ into the clips.

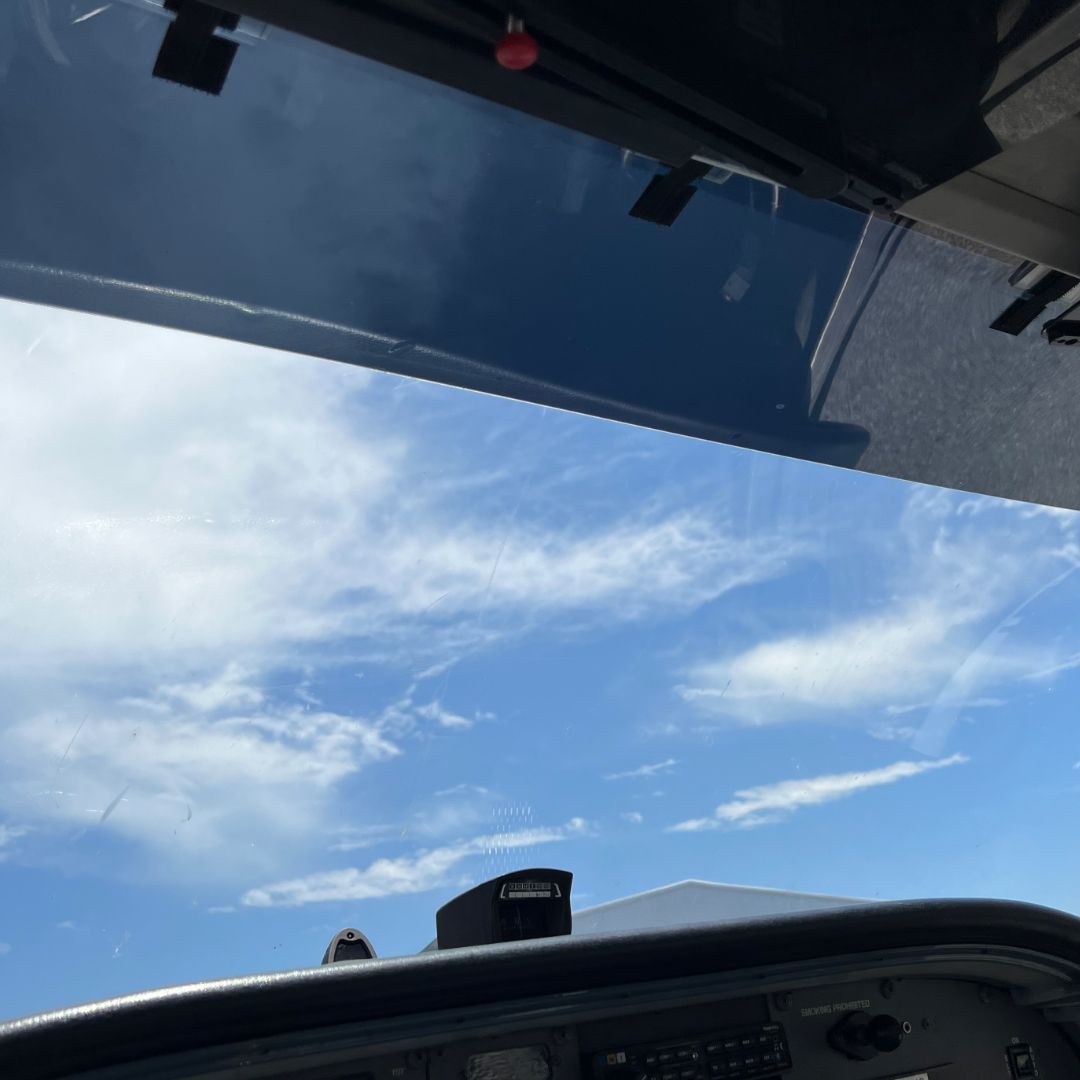

Windshield Jet Shades (if applicable to your Jet Shades package)

Test fit the windshield shades in place with mounting clips attached.
Trim the Jet Shade so the clips contact the center beam and windshield casing.
Press the shade against the windshield to make it conform to the proper shape. Hold pressure against it.
Mark the location of the mounting clips with painters’ tape, and clean this area with the alcohol swabs provided.
Peel off the liner on the back of the clip and attach it to the aircraft window casing.
Insert the Windshield Jet Shade into the clips.

Installation Video

In about 30 minutes you can customize your Ultra-Thins Heat Blocker package for a perfect fit in your Cessna 172.

Installation Tips & Tricks by E3 Aviation Association

In this 18 minute video, learn the key differences between original Jet Shades and next generation Ultra-Thins, and pick up a few installation hacks along the way. While this video shows the Jet Shades being installed in a Beechcraft, the installation tips are very helpful and apply to most aircraft.

The Heat Test

Just how much heat is rejected with the Ultra-Thins Heat Blocker package? See for yourself!

General

When parked on the ramp, how do Jet Shades compare to foil guards?

Jet Shades are designed for use during flight and can also stay in while parked on the ramp to protect the aircraft interior from excessive heat damage caused by harmful UV rays. While foil guards can be helpful, they are time-consuming and cumbersome and do not offer the benefit of blocking up to 94% infrared heat (Premium Version) and 99.9% UVA/UVB, the primary cause of cracked and faded interiors. Jet Shades keep the aircraft cooler than foil guards when parked on the ramp.

What kind of UV radiation protection do Jet Shades offer?

UV-A is 320 nm to 380 nm - transmits through the atmosphere.

UV-B is 290 nm to 320 nm - partially absorbed by the atmosphere (ozone layer).

UV-C is 100 nm to 290 nm - absorbed by the atmosphere (ozone layer).

We test and report according to NFRC standards, these reference ISO9050:2003 as the method for measuring UV transmittance between 300 nm and 380 nm.

The UV transmittance of glazing is the fraction of the incident solar radiation transmitted by the glazing in the 300 nm to 380 nm range (UV-B range from 300 nm to 315 nm and UV-A range from 315 nm to 380 nm.)

Using the NFRC method, Jet Shades are 99% or greater, on average, in UV rejection.

Where can I find warranty information for my Jet Shades?

All Jet Shades come with a two-year warranty. A copy of our warranty is shipped with your Jet Shades, or you can view the warranty here.

I have factory-tinted cabin and skylight windows in my aircraft. Do I still need Jet Shades?

The short answer is Yes! Here's why: the factory-installed limo tint package blocks mostly light - not heat. When you add our Jet Shades premium, 76% of the heat BTU’s coming in from the tinted windows will be blocked, making for cooler, more comfortable trips. And, passengers can still enjoy the amazing views with the added peace of mind because Jet Shades also block 99.9% of harmful UV radiation — a must when traveling with light-sensitive passengers, children or pets.

Is there an STC (Supplementary Type Certificate) needed to fit Jet Shades into my aircraft windows?

No, an STC is not needed as placing Jet Shades in your aircraft windows is not modifying the aircraft in any way. There are no adhesives used, no suction cups, no tools are needed, and nothing attaches to the aircraft windows. Jet Shades can be placed/removed in your aircraft windows for each flight as well as easily installed/removed by the pilots during flight.

Will Jet Shades damage the aircraft windows?

No. It takes 205℉ to start damaging acrylic windows and much higher for glass windows. Jet Shades, when installed correctly, significantly block UV/UVB and infrared rays and, unlike foil guards, do not generate windshield heat near this threshold. Jet Shades create a cooler, ambient interior temperature that preserves windows, window trim, and interior finishes.

Can I use generic film on my aircraft windows? I’ve seen mentions of ‘aviation films.’

Only if you want to violate the FAA regulations and have your aircraft grounded on a ramp check or fail a pre-buy inspection. There is no ‘Aviation film’ that is approved for aircraft use as this would require an STC. Without an STC it is a violation to make modifications to an aircraft. Films block emergency window viewing for safe egress at night which is a violation. Films cannot be ‘carried on and carried off ‘ each flight like a portable electronic device and are not loose equipment. Not to mention the internal stress films put on aircraft windows as they shrink and expand. There have been several documented window blowouts and very expensive repairs due to films. To be very clear – films are not FAA-approved unless there is an STC to do so in your aircraft.

I have Rosen Visors. Will Jet Shades interfere with these?

No. The Jet Shades will not interfere with the Rosen Visor system. You can still use the Rosen Visors with your Jet Shades installed.

Material

Are Jet Shades the same window tinting film used in automotive car windows?

No. Jet Shades do not use automotive tinting film. The film you see in cars will blister, wrinkle, and separate over time due to temperature changes and humidity when attached to surfaces other than glass. The tinting material used in automobiles absorbs a significant amount of heat which could potentially damage aircraft windows. Additionally, Jet Shades has a proprietary, engineered process for applying and curing its unique optical quality film that caters specifically to the aircraft.  Note – Films should never be placed directly on aircraft cockpit windows – especially pressurized cabins. This can cause damage to the aircraft windows including cracking or blowouts of the cockpit windows.

Can I roll up my Jet Shades?

Jet Shades are flexible and can be rolled to about a 12” diameter circle without creasing. Going smaller than that can cause damage to the Jet Shades.

Will prolonged exposure to heat damage my Jet Shade?

Jet Shades are tested to withstand extreme heat up to 200℉ without bubbling, blistering, or delaminating.

Will Condensation form on the Jet Shades?

In some conditions (usually at flight levels for longer periods of time) you may see condensation or frost develop on the Jet Shade. This is perfectly normal and will not damage the Jet Shade. If condensation or frost does appear on the Shade, we recommend you remove the panel from the window or windshield and set it aside. The condensation or frost should quickly dissipate.

DO NOT attempt to remove your Jet Shades in flight unless the autopilot is verified as on and functioning or a qualified crewmember has control of the aircraft.

How long will my Jet Shades last?

Both original Jet Shades, Generation Two, and Ultra-Thins Jet Shades were designed using technology estimated to provide 5 years of service when used and maintained following our instructions. Jet Shades come with a two-year warranty.

Generation Two and Ultra-Thins Jet Shades: While Jet Shades are flexible and will bend without breaking or shattering, they can still be creased if folded or rolled up. Therefore, Jet Shades should not be folded or rolled up into a circle smaller than 12” in diameter.

Original Jet Shades: While the Jet Shades are somewhat flexible and will bend without breaking or shattering, they can still be damaged from overbending. Jet Shades should not be flexed more than necessary to install and fit your aircraft's windows. Flexing or bending past 30 degrees, not removing them in heat conditions, and exposure to high humidity, all reduce the life of the product. We recommend you follow the instructions sheet provided for conditions requiring removal as well as storage to prolong the life of your Jet Shades.

Can Jet Shades crack or shatter?

No. Jet Shades are flexible enough that they will only crease and wrinkle. They will not shatter or break.

Installation & Fit

I have a Rail that my visor slides on around my side windows and front windshield. Will the Jet Shades work with this configuration?

Yes, the Jet Shade should be able to slide behind the rail and up against the window. We have tested this on Eclipse, Citations, King Air, and other aircraft. If you have a non-standard rail system that interferes with the Jet Shades, please let us know and we’ll help find a solution.

Do I have to change the weight and balance of my aircraft with the Jet Shades installed?

Each Jet Shades panel weighs approximately ½ pound depending upon its size. A full set of Jet Shades installed in your aircraft can weigh from 3–12 pounds depending upon the number of windows involved.  Since they are not permanently fixed to the aircraft they should be considered in the weight and balance calculation before each flight just as any other carry-on material would be.

What should I do if I am having trouble fitting my Jet Shade into my window?

If you are having trouble fitting Jet Shades into your windows, please contact us. We can determine if it is an installation issue or if we need to create an update to the shade design; or possibly, the Jet Shades you received did not match the pattern of your aircraft and the shades need to be swapped; or we can direct you to one of our Authorized Dealers. Whatever the issue is, we will work with you until resolved.

Note – there are many videos on our YouTube channel showing Installations. This may resolve issues as well.

How do Jet Shades attach to the window?

There are several different methods for installing Jet Shades depending upon your aircraft and the product line. On most piston propeller aircraft using our Ultra-Thin product line the Jet Shades slide between the aircraft window trim and window or are trimmed to fit the window exactly and rubber edging is applied. Mounting clips (provided) are attached to the windowpane and the Jet Shades panels are secured by pressing them into the clips. Gen2 Professional Series has a unique mounting system for Turboprops and Jets that provides an ultra-clean look and allows for easy installation of the Jet Shades during flight.

How can I tell if Jet Shades will fit my aircraft?

On each product page, you will find a Compatibility Chart that states which aircraft the product will fit. If you don’t see your aircraft on our site, please contact us.  Most likely, we can custom-make one for your aircraft or send you a DIY kit.

Do Jet Shades attach to the aircraft window like a cling-on film or use suction cups?

No. Jet Shades do not "stick" or attach in any way to the aircraft window and no suction cups are used. Our securing mechanism allows Jet Shades to fit into the windowpane and cover the window without attaching to it. Therefore, you never have to worry about costly damage due to adhesive films (which can also be a violation of the FAA regulations) or suction cups that restrict window expansion and contraction during flight.

Use, Cleaning & Storage

Can I leave Jet Shades in my windows when parked?

Jet Shades has a one-of-a-kind formulation that reflects most heat and absorbs only a small portion. They can remain in the windows while parked under most environmental conditions.

Generation 2 Jet Shades: Gen 2 Jet Shades are tested up to 200 degrees F and can stay in while parked. They will protect your aircraft interior from damaging UV as well as block more than 80 percent of Infrared heat. The result is foil guards can stay in the hangar, as they are not needed in the aircraft anymore.

Original Jet Shades: The Jet Shades will become about 20 – 30 degrees warmer than the interior temperature of your aircraft. In some climates, the interior could get over 140 degrees while parked, which may cause thermal expansion in the Jet Shade. Therefore, when the outside temperature exceeds 90 degrees while your plane is parked outside in the sun for over 2 hours, remove your Jet Shades from the windows.

What should I do if the Jet Shades get wet?

Immediately wipe them off with a soft cloth towel. Do not let the Jet Shades stay in moisture for any period of time. Always keep Jet Shades dry for best performance.

How should I store my Jet Shades when not in use?

The safest place to store Jet Shades is in the microfiber Jet Shade case included with most orders. Jet Shades that do not have a case are best stored in a clean dry place and kept in a low traffic area to prevent scratching. In areas with high humidity or significantly high temperatures (over 90*F) it is best to remove the Jet Shades into a lower humidity environment.

What if it gets dark or goes from day to night while flying? Can I remove my Jet Shade in flight?

Yes, Jet Shades are easily removed while flying with the Autopilot engaged. The included instruction manual provides directions for easy removal. We also note that the autopilot is verified as on and functioning, or a qualified crew member has control of the aircraft during the removal of your Jet Shades.

Can I use foil guards with Jet Shades?

No, Jet Shades cannot be used at the same time as foil guards. Foil guards are not needed when Jet Shades are installed and can scratch the Jet Shades when inserting and removing them.

How do I clean my Jet Shades?

Jet Shades have a coating system that is applied to the surface of each panel that faces outward. For that reason, Jet Shades have both left and right orientations in the cockpit windows. To ensure the integrity of your Jet Shades, they must be cleaned properly and carefully to avoid damage.

For a light cleaning (such as removing fingerprints), simply wipe with a clean, microfiber towel. To remove heavier buildup, use approximately 1 tablespoon of baby shampoo per half gallon of water and dampen the microfiber towel with the cleaning solution. You can place the Jet Shade briefly under running water then blot with a paper towel or microfiber cloth. It is not recommended to submerge or soak the Jet Shades. Alternatively, you can use 70% isopropyl alcohol. Wet a microfiber cloth with alcohol and wipe the shade.

If Jet Shades can stay installed when parked, why would I need a storage case?

When flying at night you should remove the shades and place them in the polybag provided and stow them behind the pilot seat or in the cabin for quick access. The main use of the storage case is when the plane goes into maintenance. We have had damage to Jet Shades reported as technicians did not know how to handle them properly. Therefore we recommend you remove your Jet Shades and place them in the storage case when you bring your aircraft in for maintenance. If your Jet Shades package did not include a storage case, they can be purchased separately on our website.

Jet Shades Product Warranty

Last updated: March 3, 2026

Jet Shades products are covered by a Two (2) Year Limited Warranty from the date of shipment against verified manufacturing defects and material faults present prior to installation.

Jet Shades products are precision-cut for specific aircraft models. Minor trimming or adjustment may be required during installation. This warranty applies to defects in materials and workmanship and does not cover normal installation adjustments.

What Is Covered

This warranty applies to:

Verified manufacturing defects
Material faults present prior to installation
An incorrect aircraft kit supplied by Jet Shades

If a product qualifies under warranty, Jet Shades will provide a replacement or refund at its discretion.

What Is Not Covered

This warranty does not cover:

Damage caused during installation, trimming, cutting, bending, or modification
Scratches or cosmetic damage resulting from improper handling or use
Fit variance due to aircraft-specific tolerances or cockpit variations
Normal wear and tear

If a panel is damaged during installation, reduced-cost replacement panels may be available. Please contact Customer Support for assistance.

Shipping Damage

If the shipping box appears damaged upon delivery:

Photograph the exterior of the box and the contents
Do not install any damaged panels
Contact Jet Shades Customer Support within 72 hours of delivery

Timely documentation allows for prompt resolution and, where applicable, support of carrier claims.

How to Request Warranty Support

To request warranty assistance, please contact Jet Shades Customer Support with:

Aircraft make and model
Order number
Description of the issue
Photos where applicable

An RMA (Return Merchandise Authorization) will be issued if appropriate.

For full return procedures, RMA timelines, change-of-mind returns, and billing policies, please refer to our Returns, Replacements & Chargebacks Policy.

Jet Shades Customer Support
[email protected]

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

The Jet Shades Story

The idea for Jet Shades was born in 2017 when a private pilot and engineer—frustrated by hot, uncomfortable flights—finally had enough. He wanted to enjoy flying without resorting to temporary or unsightly hacks to block the heat and glare. Using his engineering background, he tested various materials and installation methods, ultimately creating a virtually unbreakable, eye-catching window panel that blocks UV, heat, glare, and solar energy while providing maximum visibility for pilots. Jet Shades are available for cockpit and cabin windows in a growing number of aircraft types—including propeller, turboprop, jets, airliners, and helicopters.

Add to Cart
